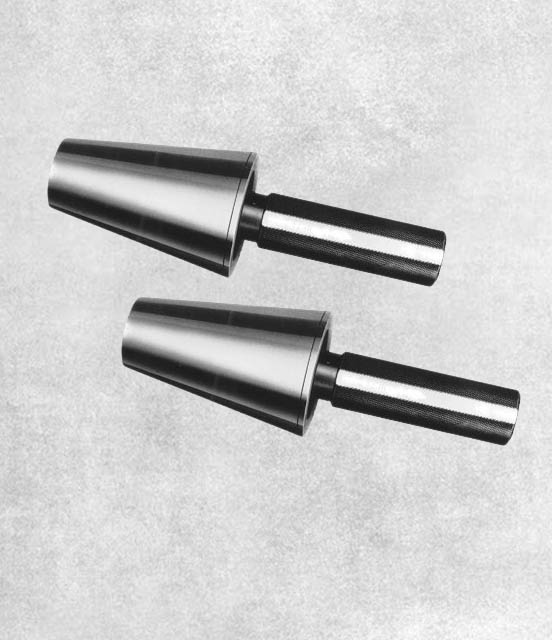

Spline Taper Gauge
Spline mandrels are utilized to locate splined components on the pitch circle diameter (PCD) of splines or on the major diameter of internal straight-sided splines or involute splines. These gauges are essential for the production of splined components, where a close relation must be maintained with internal spline profiles. Our solid spline mandrels are manufactured to meet the requirements of various engineering industries.
Specification:
- Standards: ISO, DIN, ANSI/AGMA, JIS
- Range: 3 mm to 350 mm
- Maximum Number of Teeth: 250 mm
- Minimum Pitch: 0.1 module Maximum Pitch: 25.4 module
